TEXHOO
QN10 N95
CPU Celeron N95
GPU Iris Xe 16EU
Max RAM 16GB
Drives 2
From $90
Seller Aliexpress
CPU & Performance
CPUCeleron N95
Generation12th
Threads4
Single-core39
Multi-core9
Socket0
GPU
GPUIris Xe 16EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
RAM slots1
Max speed4800 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
SD cardYes
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions116 × 116 × 46 mm
Volume0.62L
Power
TDP15W
Notes
April 17 2024: My mistake, QN10 does not have dual 2.5GB lan. They have dual 1GB lan. SSD is PCIe Gen 3 x2.
Discover More
ATOPNUC
ATOPNUC 5600U
CPU AMD r5 5600U
P-Cores / Threads 6 / 12
Socket Soldered
GPU AMD Vega 7
RAM 64GB / 2 slots
RAM Speed 3200 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet Ports 1 (1G)
Size 125×110×50mm
Vol 0.69L
From $275
Intel
NUC7i5BNH
CPU Intel i5 7260U
P-Cores / Threads 2 / 4
Socket Soldered
GPU Intel Iris Plus 640
RAM 32GB / 2 slots
RAM Speed 2133 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet Ports 1 (1G)
PSU Brick
Size 115×112×51mm
Vol 0.66L
From $160

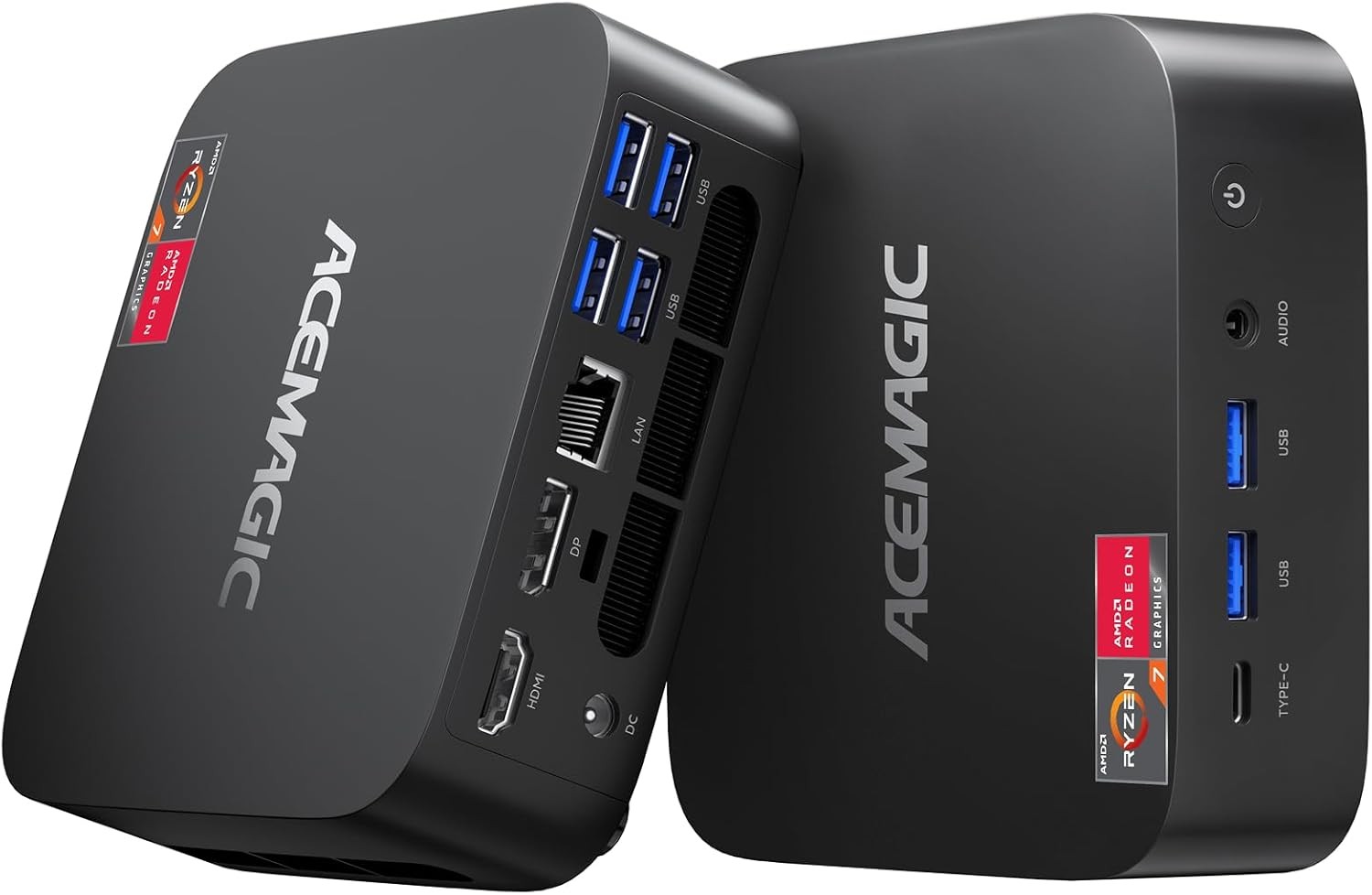

AceMagic
