MiiElAOD
R86S-P3/R86S-T3/R86S-B3
CPU Pentium N6005
GPU Jasper Lake 32EU
Max RAM 16GB
Drives 2
From $500
Seller Amazon
CPU & Performance
CPUPentium N6005
Generation11th
Threads4
Single-core35
Multi-core8
Socket0
GPU
GPUJasper Lake 32EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
Max speed2933 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
SD cardYes
Ports & Connectivity
Max displays1
Network
Max Ethernet3G
2.5G ports3
vProN
Physical
Dimensions119 × 79 × 28 mm
Volume0.26L
Fan size20mm
Power
TDP10W
Peak30W
Discover More
Simply NUC
Topaz NUC13TZi7
CPU Intel i7 1360P
P-Cores / Threads 4 / 16
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2 slots
RAM Speed 3200 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Size 115×115×49mm
Vol 0.65L
From $840

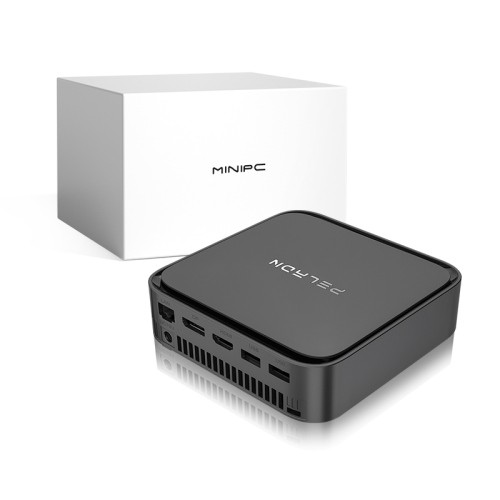

PELADN
