MechRevo
View Product
iMini Pro 820
CPU r7 8845HS/7840HS
GPU RDNA3 780M
Max RAM 96GB
Drives 2
From $400
Seller Aliexpress
CPU & Performance
CPUr7 8845HS/7840HS
GenerationZen 4
P-Cores8
Threads16
Single-core76
Multi-core44
Socket0
GPU
GPURDNA3 780M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
iGPU FP324300
RAM
Max RAM96GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions154 × 152 × 38 mm
Volume0.89L
Fan size80mm
Power
TDP65W
PSU typeBrick
Notes
Aug 9 2024: $455 to $400
Discover More
Trigkey
S6 Pro 7735HS
CPU AMD r7 7735HS/6800H
P-Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA2 680M
RAM 64GB / 2 slots
RAM Speed 4800 MT/s
Drives 2 (2 NVMe)
Ethernet Ports 1 (2.5G)
Size 126×113×42mm
Vol 0.6L
From $350

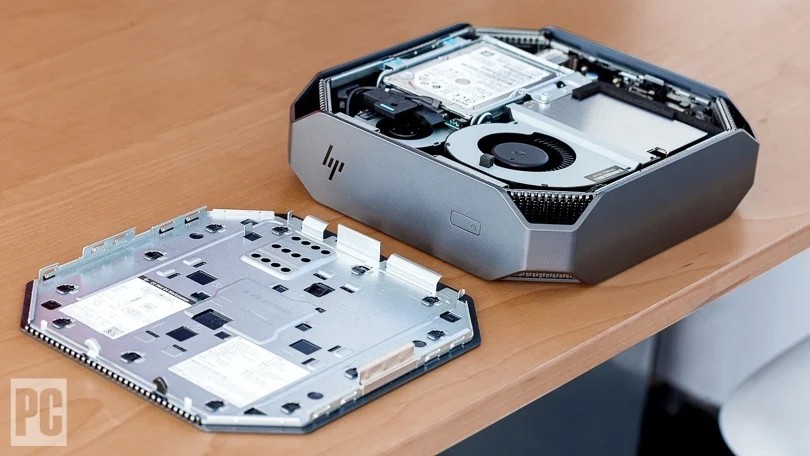

HP
Z2 Mini G4
CPU Intel Xeon E-2136G
P-Cores / Threads 6 / 12
Socket LGA1151
GPU Intel Intel UHD P630
RAM 64GB / 2 slots
RAM Speed 2666 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet Ports 1 (1G)
PSU Brick
Size 216×216×58mm
Vol 2.71L

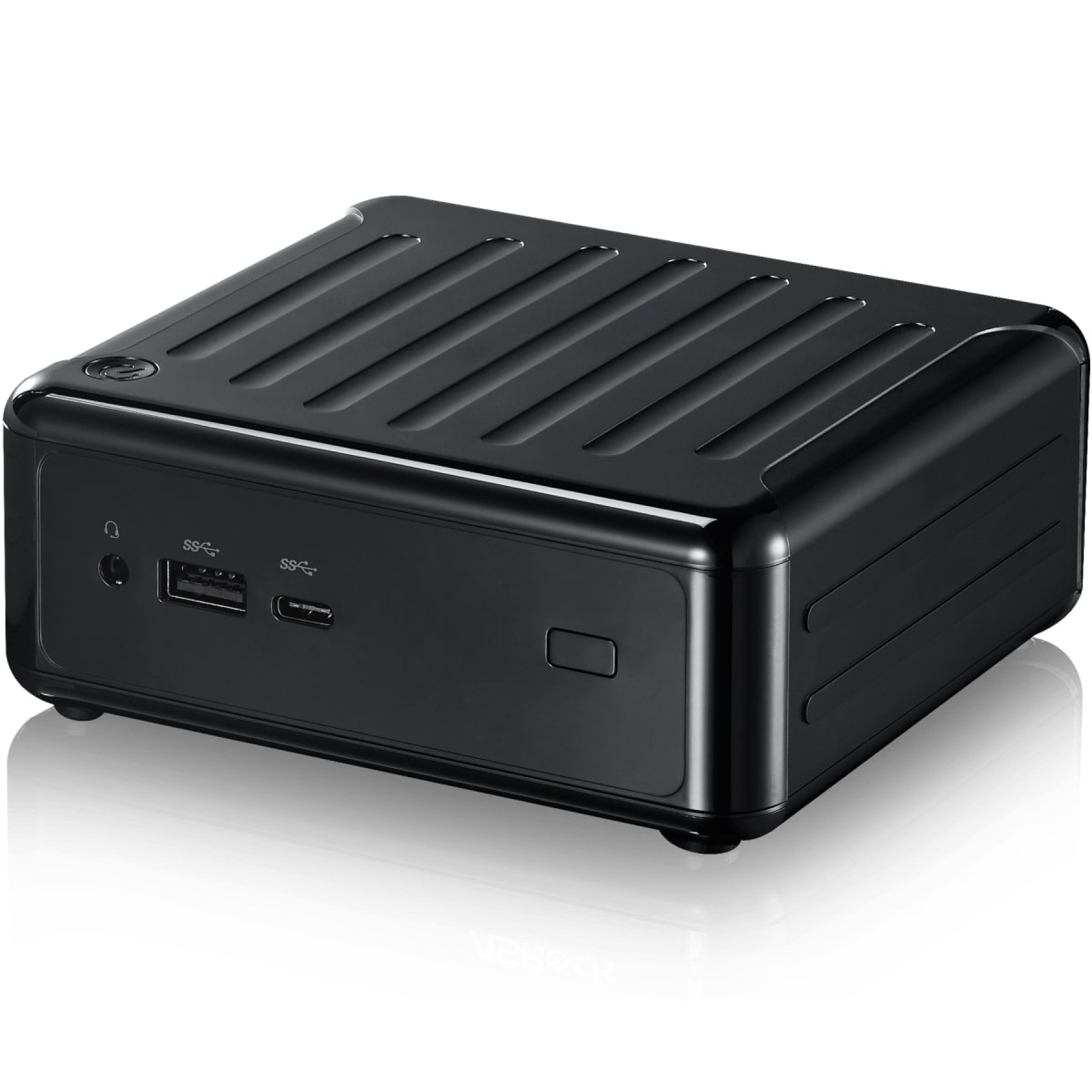

Asrock
NUC box 3010
CPU Intel Celeron N3010
P-Cores / Threads – / 2
Socket Soldered
GPU Intel Intel HD
RAM Speed 1600 MT/s
Drives 2
SATA 1×2.5"
Ethernet Ports 2 (1G)
PSU Brick
Size 119×110×46mm
Vol 0.6L
