Intel
NUC7i3BNHX1
CPU i3 7100U
GPU Intel HD 620
Max RAM 32GB
Drives 3
From $345
Seller Ebay
CPU & Performance
CPUi3 7100U
Generation7th
P-Cores2
Threads4
Single-core27
Multi-core4
Socket0
GPU
GPUIntel HD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 111 × 51 mm
Volume0.65L
Fan size55mm
Power
TDP15W
PSU typeBrick
PSU65W
Notes
Intel Optane m.2 Module 16GB
Discover More
Minisforum
UM750L 32GB
CPU AMD r5 7545U
P-Cores / Threads 6 / 12
Socket Soldered
GPU AMD RDNA3 740M
RAM 32GB
RAM Speed 6400 MT/s
Drives 2 (2 NVMe)
Ethernet Ports 1 (2.5G)
PSU Brick
Size 130×126×52mm
Vol 0.85L
From $80

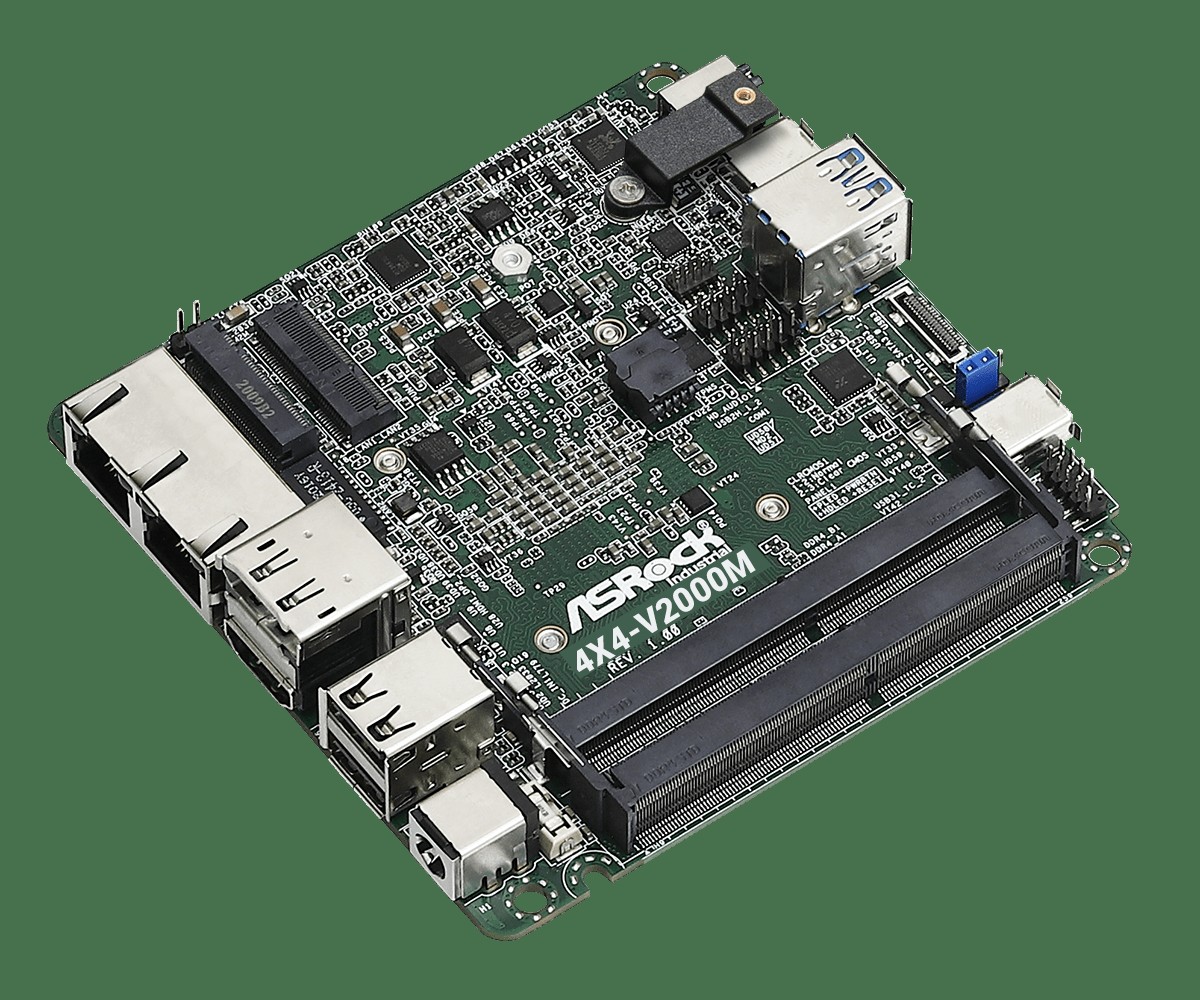

Asrock
4x4 box V2000M
CPU AMD V1000 V2718
P-Cores / Threads 8 / 16
Socket Soldered
GPU AMD Vega 7
RAM 64GB / 2 slots
RAM Speed 2400 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet Ports 2 (2.5G)
PSU Brick
Size 118×110×48mm
Vol 0.62L

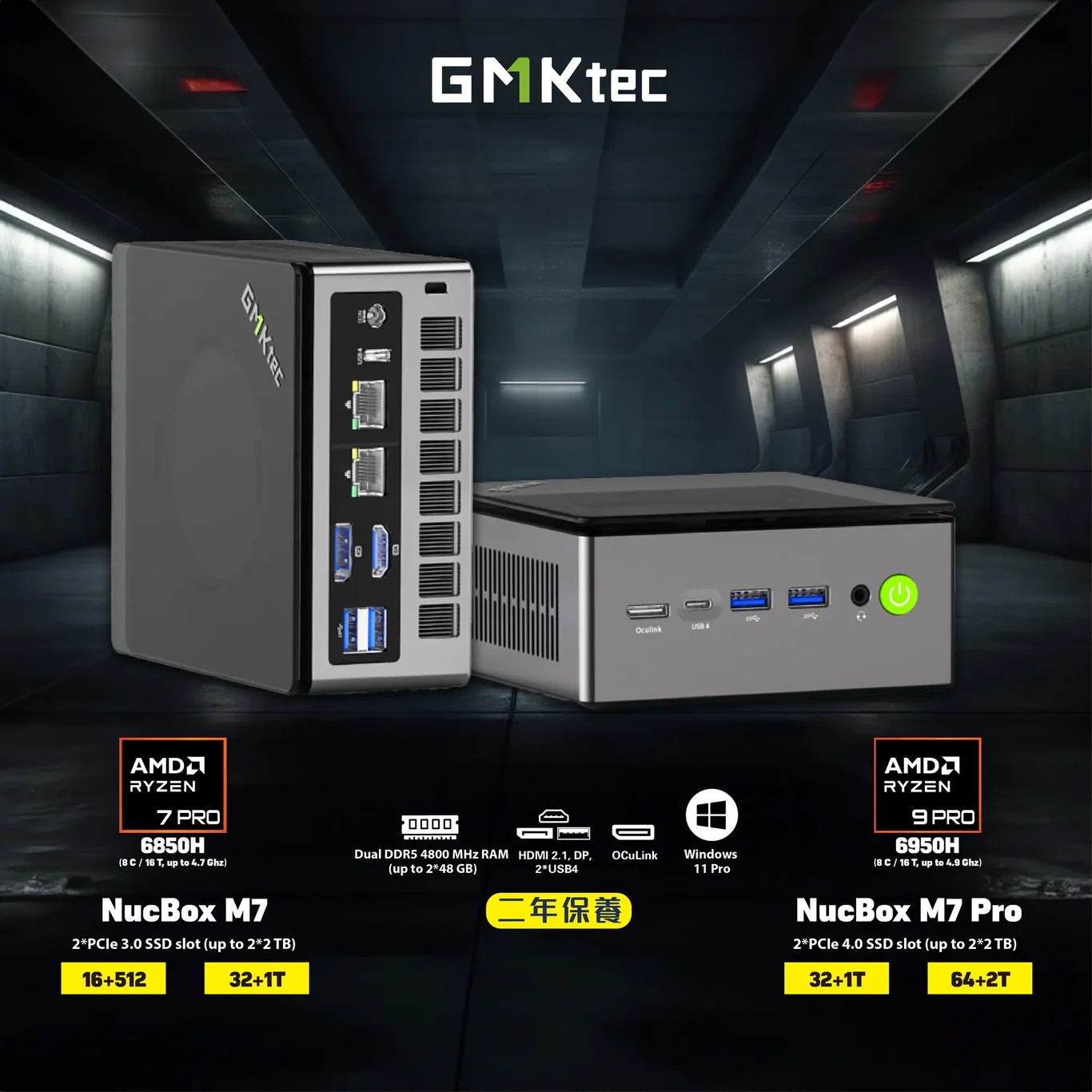

GMKtec
