CPU & Performance
CPUr5 5560U
GenerationZen 3
P-Cores6
Threads12
Single-core56
Multi-core22
Socket0
GPU
GPUVega 6
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen3 x41
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions127 × 126 × 43 mm
Volume0.69L
Fan size70mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
Pricing
16GB / 512GB$240
Notes
May 1 2024: My mistake, corrected dual 1GB ethernet to 2.5GB ethernet.
Discover More

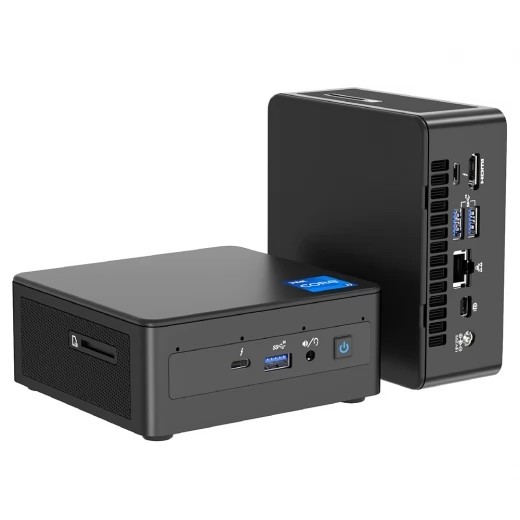

Simply NUC
